Flink on k8s 講解與實戰操作

一、概述

Flink 核心是一個流式的數據流執行引擎，並且能夠基於同一個 Flink 運行時，提供支持流處理和批處理兩種類型應用。其針對數據流的分佈式計算提供了數據分佈，數據通信及容錯機制等功能。

Flink 官網：https://flink.apache.org/
不同版本的文檔：https://nightlies.apache.org/flink/
k8s on flink 官方文檔：https://nightlies.apache.org/flink/flink-docs-release-1.14/docs/deployment/resource-providers/native_kubernetes/
也可以參考我之前的文章：大數據 Hadoop 之——實時計算流計算引擎 Flink（Flink 環境部署）
GitHub 地址：https://github.com/apache/flink/tree/release-1.14.6/

二、Flink 運行模式

官方文檔：https://nightlies.apache.org/flink/flink-docs-release-1.15/zh/docs/deployment/overview/

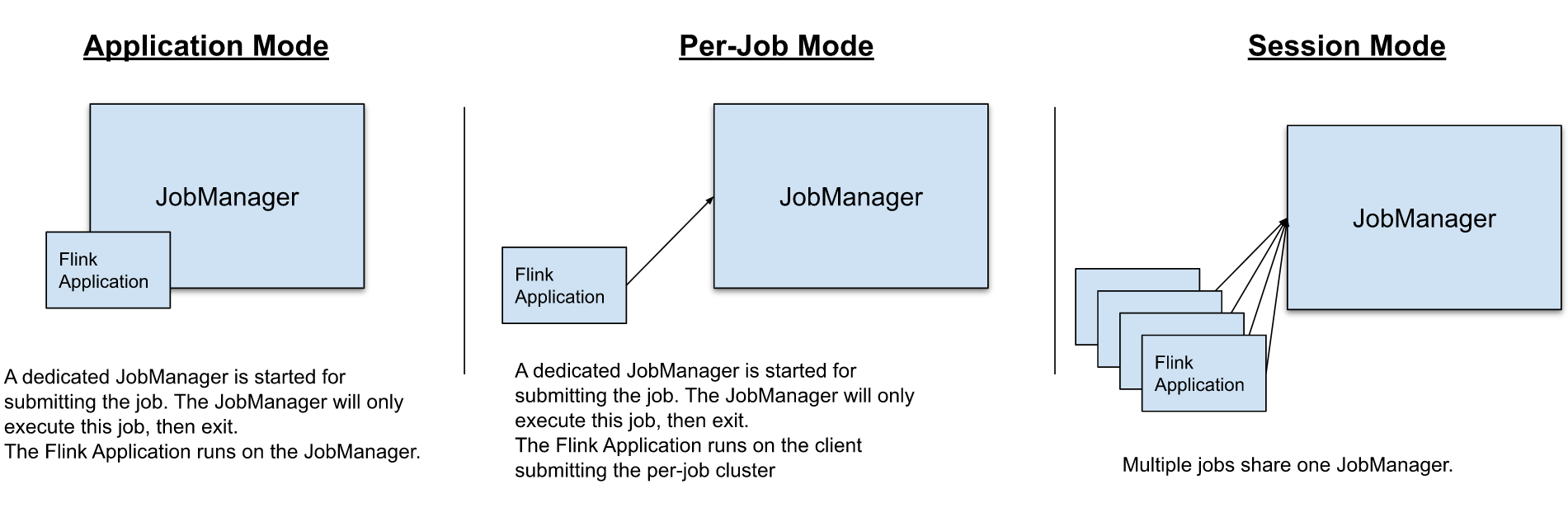

FLink on yarn 有三種運行模式：

yarn-session 模式（Seesion Mode）
yarn-cluster 模式（Per-Job Mode）
Application 模式（Application Mode）

【溫馨提示】Per-Job 模式（已棄用），Per-job 模式僅由 YARN 支持，並已在 Flink 1.15 中棄用。它將被丟棄在 FLINK-26000 中。

三、Flink on k8s 實戰操作

1）flink 下載

下載地址：https://flink.apache.org/downloads.html

wget https://dlcdn.apache.org/flink/flink-1.14.6/flink-1.14.6-bin-scala_2.12.tgz

2）構建基礎鏡像

docker pull apache/flink:1.14.6-scala_2.12
docker tag apache/flink:1.14.6-scala_2.12 myharbor.com/bigdata/flink:1.14.6-scala_2.12
docker push myharbor.com/bigdata/flink:1.14.6-scala_2.12

3）session 模式

Flink Session 集羣作爲長時間運行的 Kubernetes Deployment 執行。你可以在一個 Session 集羣上運行多個 Flink 作業。每個作業都需要在集羣部署完成後提交到集羣。
Kubernetes 中的 Flink Session 集羣部署至少包含三個組件：

運行JobManager的部署
TaskManagers池的部署
暴露JobManager 的 REST 和 UI 端口的服務

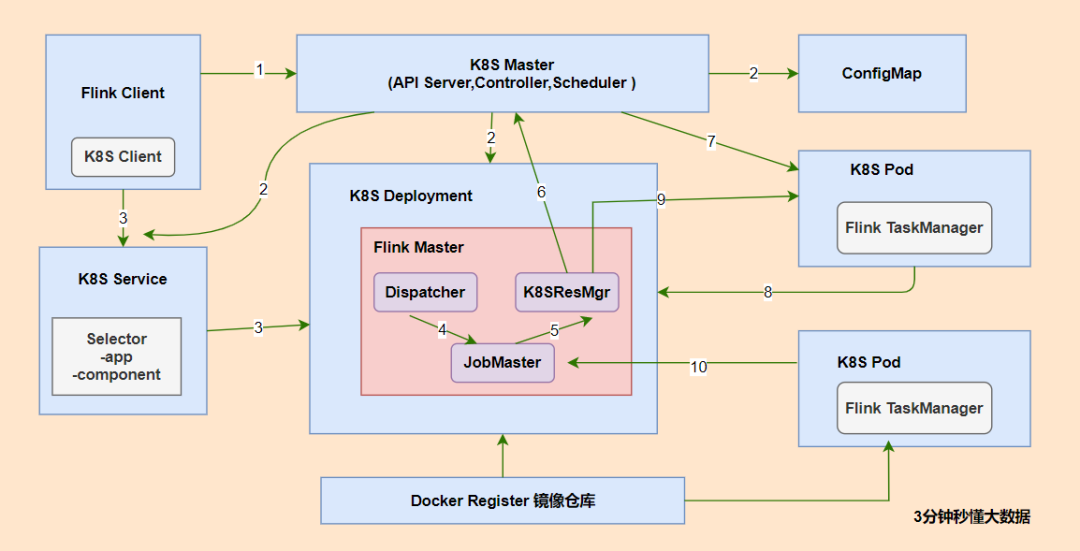

1、Native Kubernetes 模式

參數配置：
https://nightlies.apache.org/flink/flink-docs-release-1.14/docs/deployment/config/#kubernetes-namespace

【1】構建鏡像 Dockerfile

FROM myharbor.com/bigdata/flink:1.14.6-scala_2.12
RUN rm -f /etc/localtime && ln -sv /usr/share/zoneinfo/Asia/Shanghai /etc/localtime && echo "Asia/Shanghai" > /etc/timezone
RUN export LANG=zh_CN.UTF-8

開始構建鏡像

docker build -t myharbor.com/bigdata/flink-session:1.14.6-scala_2.12 . --no-cache

# 上傳鏡像
docker push myharbor.com/bigdata/flink-session:1.14.6-scala_2.12

【2】創建命名空間和 serviceaccount

# 創建namespace
kubectl create ns flink
# 創建serviceaccount
kubectl create serviceaccount flink-service-account -n flink
# 用戶授權
kubectl create clusterrolebinding flink-role-binding-flink --clusterrole=edit --serviceaccount=flink:flink-service-account

【3】創建 flink 集羣

./bin/kubernetes-session.sh \
	-Dkubernetes.cluster-id=my-first-flink-cluster  \
	-Dkubernetes.container.image=myharbor.com/bigdata/flink-session:1.14.6-scala_2.12 \
	-Dkubernetes.namespace=flink \
	-Dkubernetes.jobmanager.service-account=flink-service-account \
	-Dkubernetes.rest-service.exposed.type=NodePort

【4】提交任務

./bin/flink run \
    --target kubernetes-session \
    -Dkubernetes.cluster-id=my-first-flink-cluster \
    -Dkubernetes.namespace=flink \
    -Dkubernetes.jobmanager.service-account=flink-service-account \
    ./examples/streaming/TopSpeedWindowing.jar


    #   參數配置
    ./examples/streaming/WordCount.jar
    -Dkubernetes.taskmanager.cpu=2000m \
    -Dexternal-resource.limits.kubernetes.cpu=4000m \
	-Dexternal-resource.limits.kubernetes.memory=10Gi \
	-Dexternal-resource.requests.kubernetes.cpu=2000m \
	-Dexternal-resource.requests.kubernetes.memory=8Gi \
	-Dkubernetes.taskmanager.cpu=2000m \

【溫馨提示】注意 jdk 版本，目前 jdk8 是正常的。

【5】查看

kubectl get pods -n flink
kubectl logs -f my-first-flink-cluster-taskmanager-1-1

【6】刪除 flink 集羣

kubectl delete deployment/my-first-flink-cluster -n flink
kubectl delete ns flink --force

2、Standalone 模式

【1】構建鏡像

默認用戶是 flink 用戶，這裏我換成 admin，根據企業需要更換用戶，腳本可以通過上面運行的 pod 拿到。

啓動腳本 docker-entrypoint.sh

#!/usr/bin/env bash

###############################################################################
#  Licensed to the Apache Software Foundation (ASF) under one
#  or more contributor license agreements.  See the NOTICE file
#  distributed with this work for additional information
#  regarding copyright ownership.  The ASF licenses this file
#  to you under the Apache License, Version 2.0 (the
#  "License"); you may not use this file except in compliance
#  with the License.  You may obtain a copy of the License at
#
#      http://www.apache.org/licenses/LICENSE-2.0
#
#  Unless required by applicable law or agreed to in writing, software
#  distributed under the License is distributed on an "AS IS" BASIS,
#  WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
#  See the License for the specific language governing permissions and
# limitations under the License.
###############################################################################

COMMAND_STANDALONE="standalone-job"
COMMAND_HISTORY_SERVER="history-server"

# If unspecified, the hostname of the container is taken as the JobManager address
JOB_MANAGER_RPC_ADDRESS=${JOB_MANAGER_RPC_ADDRESS:-$(hostname -f)}
CONF_FILE="${FLINK_HOME}/conf/flink-conf.yaml"

drop_privs_cmd() {
    if [ $(id -u) != 0 ]; then
        # Don't need to drop privs if EUID != 0
        return
    elif [ -x /sbin/su-exec ]; then
        # Alpine
        echo su-exec admin
    else
        # Others
        echo gosu admin
    fi
}

copy_plugins_if_required() {
  if [ -z "$ENABLE_BUILT_IN_PLUGINS" ]; then
    return 0
  fi

  echo "Enabling required built-in plugins"
  for target_plugin in $(echo "$ENABLE_BUILT_IN_PLUGINS" | tr ';' ' '); do
    echo "Linking ${target_plugin} to plugin directory"
    plugin_name=${target_plugin%.jar}

    mkdir -p "${FLINK_HOME}/plugins/${plugin_name}"
    if [ ! -e "${FLINK_HOME}/opt/${target_plugin}" ]; then
      echo "Plugin ${target_plugin} does not exist. Exiting."
      exit 1
    else
      ln -fs "${FLINK_HOME}/opt/${target_plugin}" "${FLINK_HOME}/plugins/${plugin_name}"
      echo "Successfully enabled ${target_plugin}"
    fi
  done
}

set_config_option() {
  local option=$1
  local value=$2

  # escape periods for usage in regular expressions
  local escaped_option=$(echo ${option} | sed -e "s/\./\\\./g")

  # either override an existing entry, or append a new one
  if grep -E "^${escaped_option}:.*" "${CONF_FILE}" > /dev/null; then
        sed -i -e "s/${escaped_option}:.*/$option: $value/g" "${CONF_FILE}"
  else
        echo "${option}: ${value}" >> "${CONF_FILE}"
  fi
}

prepare_configuration() {
    set_config_option jobmanager.rpc.address ${JOB_MANAGER_RPC_ADDRESS}
    set_config_option blob.server.port 6124
    set_config_option query.server.port 6125

    if [ -n "${TASK_MANAGER_NUMBER_OF_TASK_SLOTS}" ]; then
        set_config_option taskmanager.numberOfTaskSlots ${TASK_MANAGER_NUMBER_OF_TASK_SLOTS}
    fi

    if [ -n "${FLINK_PROPERTIES}" ]; then
        echo "${FLINK_PROPERTIES}" >> "${CONF_FILE}"
    fi
    envsubst < "${CONF_FILE}" > "${CONF_FILE}.tmp" && mv "${CONF_FILE}.tmp" "${CONF_FILE}"
}

maybe_enable_jemalloc() {
    if [ "${DISABLE_JEMALLOC:-false}" == "false" ]; then
        JEMALLOC_PATH="/usr/lib/$(uname -m)-linux-gnu/libjemalloc.so"
        JEMALLOC_FALLBACK="/usr/lib/x86_64-linux-gnu/libjemalloc.so"
        if [ -f "$JEMALLOC_PATH" ]; then
            export LD_PRELOAD=$LD_PRELOAD:$JEMALLOC_PATH
        elif [ -f "$JEMALLOC_FALLBACK" ]; then
            export LD_PRELOAD=$LD_PRELOAD:$JEMALLOC_FALLBACK
        else
            if [ "$JEMALLOC_PATH" = "$JEMALLOC_FALLBACK" ]; then
                MSG_PATH=$JEMALLOC_PATH
            else
                MSG_PATH="$JEMALLOC_PATH and $JEMALLOC_FALLBACK"
            fi
            echo "WARNING: attempted to load jemalloc from $MSG_PATH but the library couldn't be found. glibc will be used instead."
        fi
    fi
}

maybe_enable_jemalloc

copy_plugins_if_required

prepare_configuration

args=("$@")
if [ "$1" = "help" ]; then
    printf "Usage: $(basename "$0") (jobmanager|${COMMAND_STANDALONE}|taskmanager|${COMMAND_HISTORY_SERVER})\n"
    printf "    Or $(basename "$0") help\n\n"
    printf "By default, Flink image adopts jemalloc as default memory allocator. This behavior can be disabled by setting the 'DISABLE_JEMALLOC' environment variable to 'true'.\n"
    exit 0
elif [ "$1" = "jobmanager" ]; then
    args=("${args[@]:1}")

    echo "Starting Job Manager"

    exec $(drop_privs_cmd) "$FLINK_HOME/bin/jobmanager.sh" start-foreground "${args[@]}"
elif [ "$1" = ${COMMAND_STANDALONE} ]; then
    args=("${args[@]:1}")

    echo "Starting Job Manager"

    exec $(drop_privs_cmd) "$FLINK_HOME/bin/standalone-job.sh" start-foreground "${args[@]}"
elif [ "$1" = ${COMMAND_HISTORY_SERVER} ]; then
    args=("${args[@]:1}")

    echo "Starting History Server"

    exec $(drop_privs_cmd) "$FLINK_HOME/bin/historyserver.sh" start-foreground "${args[@]}"
elif [ "$1" = "taskmanager" ]; then
    args=("${args[@]:1}")

    echo "Starting Task Manager"

    exec $(drop_privs_cmd) "$FLINK_HOME/bin/taskmanager.sh" start-foreground "${args[@]}"
fi

args=("${args[@]}")

# Running command in pass-through mode
exec $(drop_privs_cmd) "${args[@]}"

編排 Dockerfile

FROM myharbor.com/bigdata/centos:7.9.2009

USER root

# 安裝常用工具
RUN yum install -y vim tar wget curl rsync bzip2 iptables tcpdump less telnet net-tools lsof

# 設置時區，默認是UTC時區
RUN rm -f /etc/localtime && ln -sv /usr/share/zoneinfo/Asia/Shanghai /etc/localtime && echo "Asia/Shanghai" > /etc/timezone

RUN mkdir -p /opt/apache

ADD jdk-8u212-linux-x64.tar.gz /opt/apache/

ADD flink-1.14.6-bin-scala_2.12.tgz  /opt/apache/

ENV FLINK_HOME /opt/apache/flink-1.14.6
ENV JAVA_HOME /opt/apache/jdk1.8.0_212
ENV PATH $JAVA_HOME/bin:$PATH

# 創建用戶應用jar目錄
RUN mkdir $FLINK_HOME/usrlib/

#RUN mkdir home
COPY docker-entrypoint.sh /opt/apache/
RUN chmod +x /opt/apache/docker-entrypoint.sh

RUN groupadd --system --gid=9999 admin && useradd --system --home-dir $FLINK_HOME --uid=9999 --gid=admin admin

RUN chown -R admin:admin /opt/apache

#設置的工作目錄
WORKDIR $FLINK_HOME

# 對外暴露端口
EXPOSE 6123 8081

# 執行腳本，構建鏡像時不執行，運行實例纔會執行
ENTRYPOINT ["/opt/apache/docker-entrypoint.sh"]
CMD ["help"]

開始構建鏡像

docker build -t myharbor.com/bigdata/flink-centos-admin:1.14.6-scala_2.12 . --no-cache

# 上傳鏡像
docker push myharbor.com/bigdata/flink-centos-admin:1.14.6-scala_2.12

# 刪除鏡像
docker rmi myharbor.com/bigdata/flink-centos-admin:1.14.6-scala_2.12
crictl rmi myharbor.com/bigdata/flink-centos-admin:1.14.6-scala_2.12

【2】創建命名空間和 serviceaccount

# 創建namespace
kubectl create ns flink
# 創建serviceaccount
kubectl create serviceaccount flink-service-account -n flink
# 用戶授權
kubectl create clusterrolebinding flink-role-binding-flink --clusterrole=edit --serviceaccount=flink:flink-service-account

【3】編排 yaml 文件

flink-configuration-configmap.yaml

apiVersion: v1
kind: ConfigMap
metadata:
  name: flink-config
  labels:
    app: flink
data:
  flink-conf.yaml: |+
    jobmanager.rpc.address: flink-jobmanager
    taskmanager.numberOfTaskSlots: 2
    blob.server.port: 6124
    jobmanager.rpc.port: 6123
    taskmanager.rpc.port: 6122
    queryable-state.proxy.ports: 6125
    jobmanager.memory.process.size: 3200m
    taskmanager.memory.process.size: 2728m
    taskmanager.memory.flink.size: 2280m
    parallelism.default: 2
  log4j-console.properties: |+
    # This affects logging for both user code and Flink
    rootLogger.level = INFO
    rootLogger.appenderRef.console.ref = ConsoleAppender
    rootLogger.appenderRef.rolling.ref = RollingFileAppender

    # Uncomment this if you want to _only_ change Flink's logging
    #logger.flink.name = org.apache.flink
    #logger.flink.level = INFO

    # The following lines keep the log level of common libraries/connectors on
    # log level INFO. The root logger does not override this. You have to manually
    # change the log levels here.
    logger.akka.name = akka
    logger.akka.level = INFO
    logger.kafka.name= org.apache.kafka
    logger.kafka.level = INFO
    logger.hadoop.name = org.apache.hadoop
    logger.hadoop.level = INFO
    logger.zookeeper.name = org.apache.zookeeper
    logger.zookeeper.level = INFO

    # Log all infos to the console
    appender.console.name = ConsoleAppender
    appender.console.type = CONSOLE
    appender.console.layout.type = PatternLayout
    appender.console.layout.pattern = %d{yyyy-MM-dd HH:mm:ss,SSS} %-5p %-60c %x - %m%n

    # Log all infos in the given rolling file
    appender.rolling.name = RollingFileAppender
    appender.rolling.type = RollingFile
    appender.rolling.append = false
    appender.rolling.fileName = ${sys:log.file}
    appender.rolling.filePattern = ${sys:log.file}.%i
    appender.rolling.layout.type = PatternLayout
    appender.rolling.layout.pattern = %d{yyyy-MM-dd HH:mm:ss,SSS} %-5p %-60c %x - %m%n
    appender.rolling.policies.type = Policies
    appender.rolling.policies.size.type = SizeBasedTriggeringPolicy
    appender.rolling.policies.size.size=100MB
    appender.rolling.strategy.type = DefaultRolloverStrategy
    appender.rolling.strategy.max = 10

    # Suppress the irrelevant (wrong) warnings from the Netty channel handler
    logger.netty.name = org.jboss.netty.channel.DefaultChannelPipeline
    logger.netty.level = OFF

jobmanager-service.yaml可選服務，僅非 HA 模式需要。

apiVersion: v1
kind: Service
metadata:
  name: flink-jobmanager
spec:
  type: ClusterIP
  ports:
  - name: rpc
    port: 6123
  - name: blob-server
    port: 6124
  - name: webui
    port: 8081
  selector:
    app: flink
    component: jobmanager

jobmanager-rest-service.yaml 可選服務，將 jobmanager rest端口公開爲公共 Kubernetes 節點的端口。

apiVersion: v1
kind: Service
metadata:
  name: flink-jobmanager-rest
spec:
  type: NodePort
  ports:
  - name: rest
    port: 8081
    targetPort: 8081
    nodePort: 30081
  selector:
    app: flink
    component: jobmanager

taskmanager-query-state-service.yaml 可選服務，公開 TaskManager 端口以訪問可查詢狀態作爲公共 Kubernetes 節點的端口。

apiVersion: v1
kind: Service
metadata:
  name: flink-taskmanager-query-state
spec:
  type: NodePort
  ports:
  - name: query-state
    port: 6125
    targetPort: 6125
    nodePort: 30025
  selector:
    app: flink
    component: taskmanager

以上幾個配置文件是公共的

jobmanager-session-deployment-non-ha.yaml

apiVersion: apps/v1
kind: Deployment
metadata:
  name: flink-jobmanager
spec:
  replicas: 1
  selector:
    matchLabels:
      app: flink
      component: jobmanager
  template:
    metadata:
      labels:
        app: flink
        component: jobmanager
    spec:
      containers:
      - name: jobmanager
        image: myharbor.com/bigdata/flink-centos-admin:1.14.6-scala_2.12
        args: ["jobmanager"]
        ports:
        - containerPort: 6123
          name: rpc
        - containerPort: 6124
          name: blob-server
        - containerPort: 8081
          name: webui
        livenessProbe:
          tcpSocket:
            port: 6123
          initialDelaySeconds: 30
          periodSeconds: 60
        volumeMounts:
        - name: flink-config-volume
          mountPath: /opt/apache/flink-1.14.6/conf/
        securityContext:
          runAsUser: 9999  # refers to user _flink_ from official flink image, change if necessary
      volumes:
      - name: flink-config-volume
        configMap:
          name: flink-config
          items:
          - key: flink-conf.yaml
            path: flink-conf.yaml
          - key: log4j-console.properties
            path: log4j-console.properties

taskmanager-session-deployment.yaml

apiVersion: apps/v1
kind: Deployment
metadata:
  name: flink-taskmanager
spec:
  replicas: 2
  selector:
    matchLabels:
      app: flink
      component: taskmanager
  template:
    metadata:
      labels:
        app: flink
        component: taskmanager
    spec:
      containers:
      - name: taskmanager
        image: myharbor.com/bigdata/flink-centos-admin:1.14.6-scala_2.12
        args: ["taskmanager"]
        ports:
        - containerPort: 6122
          name: rpc
        - containerPort: 6125
          name: query-state
        livenessProbe:
          tcpSocket:
            port: 6122
          initialDelaySeconds: 30
          periodSeconds: 60
        volumeMounts:
        - name: flink-config-volume
          mountPath: /opt/apache/flink-1.14.6/conf/
        securityContext:
          runAsUser: 9999  # refers to user _flink_ from official flink image, change if necessary
      volumes:
      - name: flink-config-volume
        configMap:
          name: flink-config
          items:
          - key: flink-conf.yaml
            path: flink-conf.yaml
          - key: log4j-console.properties
            path: log4j-console.properties

【4】創建 flink 集羣

kubectl create ns flink
# Configuration and service definition
kubectl create -f flink-configuration-configmap.yaml -n flink

# service
kubectl create -f jobmanager-service.yaml -n flink
kubectl create -f jobmanager-rest-service.yaml -n flink
kubectl create -f taskmanager-query-state-service.yaml -n flink

# Create the deployments for the cluster
kubectl create -f jobmanager-session-deployment-non-ha.yaml -n flink
kubectl create -f taskmanager-session-deployment.yaml -n flink

鏡像逆向解析 dockerfile

alias whaler="docker run -t --rm -v /var/run/docker.sock:/var/run/docker.sock:ro pegleg/whaler"
whaler flink:1.14.6-scala_2.12

查看

kubectl get pods,svc -n flink -owide

web：http://192.168.182.110:30081/#/overview

【5】提交任務

./bin/flink run -m local-168-182-110:30081 ./examples/streaming/WordCount.jar

kubectl logs flink-taskmanager-54649bf96c-zjtkh -n flink

【6】刪除 flink 集羣

kubectl delete -f jobmanager-service.yaml -n flink
kubectl delete -f flink-configuration-configmap.yaml -n flink
kubectl delete -f taskmanager-session-deployment.yaml -n flink
kubectl delete -f jobmanager-session-deployment.yaml -n flink
kubectl delete ns flink --force

【7】訪問 flink web

端口就是jobmanager-rest-service.yaml文件中的 NodePort

http://192.168.182.110:30081/#/overview

4）application 模式（推薦）

Kubernetes 中一個基本的 Flink Application 集羣部署包含三個組件：

運行JobManager的應用程序
TaskManagers池的部署
暴露JobManager 的 REST 和 UI 端口的服務

1、Native Kubernetes 模式（常用）

【1】構建鏡像 Dockerfile

FROM myharbor.com/bigdata/flink:1.14.6-scala_2.12
RUN rm -f /etc/localtime && ln -sv /usr/share/zoneinfo/Asia/Shanghai /etc/localtime && echo "Asia/Shanghai" > /etc/timezone
RUN export LANG=zh_CN.UTF-8
RUN mkdir -p $FLINK_HOME/usrlib
COPY  TopSpeedWindowing.jar $FLINK_HOME/usrlib/

開始構建鏡像

docker build -t myharbor.com/bigdata/flink-application:1.14.6-scala_2.12 . --no-cache

# 上傳鏡像
docker push myharbor.com/bigdata/flink-application:1.14.6-scala_2.12

# 刪除鏡像
docker rmi myharbor.com/bigdata/flink-application:1.14.6-scala_2.12
crictl rmi myharbor.com/bigdata/flink-application:1.14.6-scala_2.12

【2】創建命名空間和 serviceacount

# 創建namespace
kubectl create ns flink
# 創建serviceaccount
kubectl create serviceaccount flink-service-account -n flink
# 用戶授權
kubectl create clusterrolebinding flink-role-binding-flink --clusterrole=edit --serviceaccount=flink:flink-service-account

【3】創建 flink 集羣並提交任務

./bin/flink run-application \
    --target kubernetes-application \
    -Dkubernetes.cluster-id=my-first-application-cluster  \
	-Dkubernetes.container.image=myharbor.com/bigdata/flink-application:1.14.6-scala_2.12 \
	-Dkubernetes.jobmanager.replicas=1 \
	-Dkubernetes.namespace=flink \
	-Dkubernetes.jobmanager.service-account=flink-service-account \
	-Dexternal-resource.limits.kubernetes.cpu=2000m \
	-Dexternal-resource.limits.kubernetes.memory=2Gi \
	-Dexternal-resource.requests.kubernetes.cpu=1000m \
	-Dexternal-resource.requests.kubernetes.memory=1Gi \
	-Dkubernetes.rest-service.exposed.type=NodePort \
	local:///opt/flink/usrlib/TopSpeedWindowing.jar

【注意】 local是應用模式中唯一支持的方案。local 代表本地環境，這裏即 pod 或者容器環境，並非宿主機。

查看

kubectl get pods pods,svc -n flink

kubectl logs -f my-first-application-cluster-taskmanager-1-1 -n flink

【4】刪除 flink 集羣

kubectl delete deployment/my-first-application-cluster -n flink
kubectl delete ns flink --force

2、Standalone 模式

【1】構建鏡像 Dockerfile

啓動腳本 docker-entrypoint.sh

#!/usr/bin/env bash

###############################################################################
#  Licensed to the Apache Software Foundation (ASF) under one
#  or more contributor license agreements.  See the NOTICE file
#  distributed with this work for additional information
#  regarding copyright ownership.  The ASF licenses this file
#  to you under the Apache License, Version 2.0 (the
#  "License"); you may not use this file except in compliance
#  with the License.  You may obtain a copy of the License at
#
#      http://www.apache.org/licenses/LICENSE-2.0
#
#  Unless required by applicable law or agreed to in writing, software
#  distributed under the License is distributed on an "AS IS" BASIS,
#  WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
#  See the License for the specific language governing permissions and
# limitations under the License.
###############################################################################

COMMAND_STANDALONE="standalone-job"
COMMAND_HISTORY_SERVER="history-server"

# If unspecified, the hostname of the container is taken as the JobManager address
JOB_MANAGER_RPC_ADDRESS=${JOB_MANAGER_RPC_ADDRESS:-$(hostname -f)}
CONF_FILE="${FLINK_HOME}/conf/flink-conf.yaml"

drop_privs_cmd() {
    if [ $(id -u) != 0 ]; then
        # Don't need to drop privs if EUID != 0
        return
    elif [ -x /sbin/su-exec ]; then
        # Alpine
        echo su-exec admin
    else
        # Others
        echo gosu admin
    fi
}

copy_plugins_if_required() {
  if [ -z "$ENABLE_BUILT_IN_PLUGINS" ]; then
    return 0
  fi

  echo "Enabling required built-in plugins"
  for target_plugin in $(echo "$ENABLE_BUILT_IN_PLUGINS" | tr ';' ' '); do
    echo "Linking ${target_plugin} to plugin directory"
    plugin_name=${target_plugin%.jar}

    mkdir -p "${FLINK_HOME}/plugins/${plugin_name}"
    if [ ! -e "${FLINK_HOME}/opt/${target_plugin}" ]; then
      echo "Plugin ${target_plugin} does not exist. Exiting."
      exit 1
    else
      ln -fs "${FLINK_HOME}/opt/${target_plugin}" "${FLINK_HOME}/plugins/${plugin_name}"
      echo "Successfully enabled ${target_plugin}"
    fi
  done
}

set_config_option() {
  local option=$1
  local value=$2

  # escape periods for usage in regular expressions
  local escaped_option=$(echo ${option} | sed -e "s/\./\\\./g")

  # either override an existing entry, or append a new one
  if grep -E "^${escaped_option}:.*" "${CONF_FILE}" > /dev/null; then
        sed -i -e "s/${escaped_option}:.*/$option: $value/g" "${CONF_FILE}"
  else
        echo "${option}: ${value}" >> "${CONF_FILE}"
  fi
}

prepare_configuration() {
    set_config_option jobmanager.rpc.address ${JOB_MANAGER_RPC_ADDRESS}
    set_config_option blob.server.port 6124
    set_config_option query.server.port 6125

    if [ -n "${TASK_MANAGER_NUMBER_OF_TASK_SLOTS}" ]; then
        set_config_option taskmanager.numberOfTaskSlots ${TASK_MANAGER_NUMBER_OF_TASK_SLOTS}
    fi

    if [ -n "${FLINK_PROPERTIES}" ]; then
        echo "${FLINK_PROPERTIES}" >> "${CONF_FILE}"
    fi
    envsubst < "${CONF_FILE}" > "${CONF_FILE}.tmp" && mv "${CONF_FILE}.tmp" "${CONF_FILE}"
}

maybe_enable_jemalloc() {
    if [ "${DISABLE_JEMALLOC:-false}" == "false" ]; then
        JEMALLOC_PATH="/usr/lib/$(uname -m)-linux-gnu/libjemalloc.so"
        JEMALLOC_FALLBACK="/usr/lib/x86_64-linux-gnu/libjemalloc.so"
        if [ -f "$JEMALLOC_PATH" ]; then
            export LD_PRELOAD=$LD_PRELOAD:$JEMALLOC_PATH
        elif [ -f "$JEMALLOC_FALLBACK" ]; then
            export LD_PRELOAD=$LD_PRELOAD:$JEMALLOC_FALLBACK
        else
            if [ "$JEMALLOC_PATH" = "$JEMALLOC_FALLBACK" ]; then
                MSG_PATH=$JEMALLOC_PATH
            else
                MSG_PATH="$JEMALLOC_PATH and $JEMALLOC_FALLBACK"
            fi
            echo "WARNING: attempted to load jemalloc from $MSG_PATH but the library couldn't be found. glibc will be used instead."
        fi
    fi
}

maybe_enable_jemalloc

copy_plugins_if_required

prepare_configuration

args=("$@")
if [ "$1" = "help" ]; then
    printf "Usage: $(basename "$0") (jobmanager|${COMMAND_STANDALONE}|taskmanager|${COMMAND_HISTORY_SERVER})\n"
    printf "    Or $(basename "$0") help\n\n"
    printf "By default, Flink image adopts jemalloc as default memory allocator. This behavior can be disabled by setting the 'DISABLE_JEMALLOC' environment variable to 'true'.\n"
    exit 0
elif [ "$1" = "jobmanager" ]; then
    args=("${args[@]:1}")

    echo "Starting Job Manager"

    exec $(drop_privs_cmd) "$FLINK_HOME/bin/jobmanager.sh" start-foreground "${args[@]}"
elif [ "$1" = ${COMMAND_STANDALONE} ]; then
    args=("${args[@]:1}")

    echo "Starting Job Manager"

    exec $(drop_privs_cmd) "$FLINK_HOME/bin/standalone-job.sh" start-foreground "${args[@]}"
elif [ "$1" = ${COMMAND_HISTORY_SERVER} ]; then
    args=("${args[@]:1}")

    echo "Starting History Server"

    exec $(drop_privs_cmd) "$FLINK_HOME/bin/historyserver.sh" start-foreground "${args[@]}"
elif [ "$1" = "taskmanager" ]; then
    args=("${args[@]:1}")

    echo "Starting Task Manager"

    exec $(drop_privs_cmd) "$FLINK_HOME/bin/taskmanager.sh" start-foreground "${args[@]}"
fi

args=("${args[@]}")

# Running command in pass-through mode
exec $(drop_privs_cmd) "${args[@]}"

編排Dockerfile

FROM myharbor.com/bigdata/centos:7.9.2009

USER root

# 安裝常用工具
RUN yum install -y vim tar wget curl rsync bzip2 iptables tcpdump less telnet net-tools lsof

# 設置時區，默認是UTC時區
RUN rm -f /etc/localtime && ln -sv /usr/share/zoneinfo/Asia/Shanghai /etc/localtime && echo "Asia/Shanghai" > /etc/timezone

RUN mkdir -p /opt/apache

ADD jdk-8u212-linux-x64.tar.gz /opt/apache/

ADD flink-1.14.6-bin-scala_2.12.tgz  /opt/apache/

ENV FLINK_HOME /opt/apache/flink-1.14.6
ENV JAVA_HOME /opt/apache/jdk1.8.0_212
ENV PATH $JAVA_HOME/bin:$PATH

# 創建用戶應用jar目錄
RUN mkdir $FLINK_HOME/usrlib/

#RUN mkdir home
COPY docker-entrypoint.sh /opt/apache/

RUN groupadd --system --gid=9999 admin && useradd --system --home-dir $FLINK_HOME --uid=9999 --gid=admin admin

RUN chown -R admin:admin /opt/apache
RUN chmod +x ${FLINK_HOME}/docker-entrypoint.sh

#設置的工作目錄
WORKDIR $FLINK_HOME

# 對外暴露端口
EXPOSE 6123 8081

# 執行腳本，構建鏡像時不執行，運行實例纔會執行
ENTRYPOINT ["/opt/apache/docker-entrypoint.sh"]
CMD ["help"]

docker build -t myharbor.com/bigdata/flink-centos-admin:1.14.6-scala_2.12 . --no-cache

# 上傳鏡像
docker push myharbor.com/bigdata/flink-centos-admin:1.14.6-scala_2.12

# 刪除鏡像
docker rmi myharbor.com/bigdata/flink-centos-admin:1.14.6-scala_2.12

【2】創建命名空間和 serviceacount

# 創建namespace
kubectl create ns flink
# 創建serviceaccount
kubectl create serviceaccount flink-service-account -n flink
# 用戶授權
kubectl create clusterrolebinding flink-role-binding-flink --clusterrole=edit --serviceaccount=flink:flink-service-account

【3】編排 yaml 文件

flink-configuration-configmap.yaml

apiVersion: v1
kind: ConfigMap
metadata:
  name: flink-config
  labels:
    app: flink
data:
  flink-conf.yaml: |+
    jobmanager.rpc.address: flink-jobmanager
    taskmanager.numberOfTaskSlots: 2
    blob.server.port: 6124
    jobmanager.rpc.port: 6123
    taskmanager.rpc.port: 6122
    queryable-state.proxy.ports: 6125
    jobmanager.memory.process.size: 3200m
    taskmanager.memory.process.size: 2728m
    taskmanager.memory.flink.size: 2280m
    parallelism.default: 2
  log4j-console.properties: |+
    # This affects logging for both user code and Flink
    rootLogger.level = INFO
    rootLogger.appenderRef.console.ref = ConsoleAppender
    rootLogger.appenderRef.rolling.ref = RollingFileAppender

    # Uncomment this if you want to _only_ change Flink's logging
    #logger.flink.name = org.apache.flink
    #logger.flink.level = INFO

    # The following lines keep the log level of common libraries/connectors on
    # log level INFO. The root logger does not override this. You have to manually
    # change the log levels here.
    logger.akka.name = akka
    logger.akka.level = INFO
    logger.kafka.name= org.apache.kafka
    logger.kafka.level = INFO
    logger.hadoop.name = org.apache.hadoop
    logger.hadoop.level = INFO
    logger.zookeeper.name = org.apache.zookeeper
    logger.zookeeper.level = INFO

    # Log all infos to the console
    appender.console.name = ConsoleAppender
    appender.console.type = CONSOLE
    appender.console.layout.type = PatternLayout
    appender.console.layout.pattern = %d{yyyy-MM-dd HH:mm:ss,SSS} %-5p %-60c %x - %m%n

    # Log all infos in the given rolling file
    appender.rolling.name = RollingFileAppender
    appender.rolling.type = RollingFile
    appender.rolling.append = false
    appender.rolling.fileName = ${sys:log.file}
    appender.rolling.filePattern = ${sys:log.file}.%i
    appender.rolling.layout.type = PatternLayout
    appender.rolling.layout.pattern = %d{yyyy-MM-dd HH:mm:ss,SSS} %-5p %-60c %x - %m%n
    appender.rolling.policies.type = Policies
    appender.rolling.policies.size.type = SizeBasedTriggeringPolicy
    appender.rolling.policies.size.size=100MB
    appender.rolling.strategy.type = DefaultRolloverStrategy
    appender.rolling.strategy.max = 10

    # Suppress the irrelevant (wrong) warnings from the Netty channel handler
    logger.netty.name = org.jboss.netty.channel.DefaultChannelPipeline
    logger.netty.level = OFF

jobmanager-service.yaml可選服務，僅非 HA 模式需要。

apiVersion: v1
kind: Service
metadata:
  name: flink-jobmanager
spec:
  type: ClusterIP
  ports:
  - name: rpc
    port: 6123
  - name: blob-server
    port: 6124
  - name: webui
    port: 8081
  selector:
    app: flink
    component: jobmanager

jobmanager-rest-service.yaml 可選服務，將 jobmanager rest端口公開爲公共 Kubernetes 節點的端口。

apiVersion: v1
kind: Service
metadata:
  name: flink-jobmanager-rest
spec:
  type: NodePort
  ports:
  - name: rest
    port: 8081
    targetPort: 8081
    nodePort: 30081
  selector:
    app: flink
    component: jobmanager

taskmanager-query-state-service.yaml 可選服務，公開 TaskManager 端口以訪問可查詢狀態作爲公共 Kubernetes 節點的端口。

apiVersion: v1
kind: Service
metadata:
  name: flink-taskmanager-query-state
spec:
  type: NodePort
  ports:
  - name: query-state
    port: 6125
    targetPort: 6125
    nodePort: 30025
  selector:
    app: flink
    component: taskmanager

jobmanager-application-non-ha.yaml ，非高可用

apiVersion: batch/v1
kind: Job
metadata:
  name: flink-jobmanager
spec:
  template:
    metadata:
      labels:
        app: flink
        component: jobmanager
    spec:
      restartPolicy: OnFailure
      containers:
        - name: jobmanager
          image: myharbor.com/bigdata/flink-centos-admin:1.14.6-scala_2.12
          env:
          args: ["standalone-job", "--job-classname", "org.apache.flink.examples.java.wordcount.WordCount","--output","/tmp/result"]
          ports:
            - containerPort: 6123
              name: rpc
            - containerPort: 6124
              name: blob-server
            - containerPort: 8081
              name: webui
          livenessProbe:
            tcpSocket:
              port: 6123
            initialDelaySeconds: 30
            periodSeconds: 60
          volumeMounts:
            - name: flink-config-volume
              mountPath: /opt/apache/flink-1.14.6/conf
            - name: job-artifacts-volume
              mountPath: /opt/apache/flink-1.14.6/usrlib
          securityContext:
            runAsUser: 9999  # refers to user _flink_ from official flink image, change if necessary
      volumes:
        - name: flink-config-volume
          configMap:
            name: flink-config
            items:
              - key: flink-conf.yaml
                path: flink-conf.yaml
              - key: log4j-console.properties
                path: log4j-console.properties
        - name: job-artifacts-volume
          hostPath:
            path: /mnt/nfsdata/flink/application/job-artifacts

【溫馨提示】注意這裏的掛載/mnt/bigdata/flink/usrlib，最好這裏使用共享目錄。

taskmanager-job-deployment.yaml

apiVersion: apps/v1
kind: Deployment
metadata:
  name: flink-taskmanager
spec:
  replicas: 2
  selector:
    matchLabels:
      app: flink
      component: taskmanager
  template:
    metadata:
      labels:
        app: flink
        component: taskmanager
    spec:
      containers:
      - name: taskmanager
        image: myharbor.com/bigdata/flink-centos-admin:1.14.6-scala_2.12
        env:
        args: ["taskmanager"]
        ports:
        - containerPort: 6122
          name: rpc
        - containerPort: 6125
          name: query-state
        livenessProbe:
          tcpSocket:
            port: 6122
          initialDelaySeconds: 30
          periodSeconds: 60
        volumeMounts:
        - name: flink-config-volume
          mountPath: /opt/apache/flink-1.14.6/conf
        - name: job-artifacts-volume
          mountPath: /opt/apache/flink-1.14.6/usrlib
        securityContext:
          runAsUser: 9999  # refers to user _flink_ from official flink image, change if necessary
      volumes:
      - name: flink-config-volume
        configMap:
          name: flink-config
          items:
          - key: flink-conf.yaml
            path: flink-conf.yaml
          - key: log4j-console.properties
            path: log4j-console.properties
      - name: job-artifacts-volume
        hostPath:
          path: /mnt/nfsdata/flink/application/job-artifacts

【4】創建 flink 集羣並提交任務

kubectl create ns flink
# Configuration and service definition
kubectl create -f flink-configuration-configmap.yaml -n flink

# service
kubectl create -f jobmanager-service.yaml -n flink
kubectl create -f jobmanager-rest-service.yaml -n flink
kubectl create -f taskmanager-query-state-service.yaml -n flink

# Create the deployments for the cluster
kubectl create -f  jobmanager-application-non-ha.yaml -n flink
kubectl create -f  taskmanager-job-deployment.yaml -n flink

查看

kubectl get pods,svc -n flink

【5】刪除 flink 集羣

kubectl delete -f flink-configuration-configmap.yaml -n flink
kubectl delete -f jobmanager-service.yaml -n flink
kubectl delete -f jobmanager-rest-service.yaml -n flink
kubectl delete -f taskmanager-query-state-service.yaml -n flink
kubectl delete -f jobmanager-application-non-ha.yaml -n flink
kubectl delete -f taskmanager-job-deployment.yaml -n flink

kubectl delete ns flink --force

【6】查看

kubectl get pods,svc -n flink
kubectl exec -it flink-taskmanager-54cb7fc57c-g484q -n flink -- bash

Flink on k8s 講解與實戰操作，這裏只是拿官方示例進行演示，後續也有相關企業案例，有任何疑問的小夥伴歡迎給我留言，後續會持續分享【雲原生 + 大數據】相關的教程，請小夥伴耐心等待~

本文由 Readfog 進行 AMP 轉碼，版權歸原作者所有。
來源：https://www.cnblogs.com/liugp/p/16755095.html

一、概述

二、Flink 運行模式

三、Flink on k8s 實戰操作

1）flink 下載

2）構建基礎鏡像

3）session 模式

1、Native Kubernetes 模式

【1】構建鏡像 Dockerfile

【2】創建命名空間和 serviceaccount

【3】創建 flink 集羣

【4】提交任務

【5】查看

【6】刪除 flink 集羣

2、Standalone 模式

【1】構建鏡像

【2】創建命名空間和 serviceaccount

【3】編排 yaml 文件

【4】創建 flink 集羣

【5】提交任務

【6】刪除 flink 集羣

【7】訪問 flink web

4）application 模式（推薦）

1、Native Kubernetes 模式（常用）

【1】構建鏡像 Dockerfile

【2】創建命名空間和 serviceacount

【3】創建 flink 集羣並提交任務

【4】刪除 flink 集羣

2、Standalone 模式

【1】構建鏡像 Dockerfile

【2】創建命名空間和 serviceacount

【3】編排 yaml 文件

【4】創建 flink 集羣並提交任務

【5】刪除 flink 集羣

【6】查看

猜你喜歡
