使用 Helm 部署 Consul 集羣

Helm 介紹

helm 是 kubernetes 的包管理器。它相當於 CentOSyumUbuntuapt

helm 中有三大概念:

總結:Helm 安裝 charts 到 Kubernetes 集羣中,每次安裝都會創建一個新的 release 。你可以在 Helmchart repositories 中尋找新的 chart

準備階段

擁有一個 Kubernetes 集羣,如下:具體配置:

| 類型 | IP 地址 | 系統版本 | 配置 | | --- | --- | --- | --- | | Master 主節點 | 192.168.19.136 | CentOS Linux release 7.9.2009 (Core) | 4 核 4G | | Work 工作節點 1 | 192.168.19.137 | CentOS Linux release 7.9.2009 (Core) | 4 核 4G | | Work 工作節點 2 | 192.168.19.138 | CentOS Linux release 7.9.2009 (Core) | 4 核 4G |

選擇 Helm 版本

| Helm 版本 | 支持的 Kubernetes 版本 | | --- | --- | | 3.5.x | 1.20.x - 1.17.x | | 3.4.x | 1.19.x - 1.16.x | | 3.3.x | 1.18.x - 1.15.x | | 3.2.x | 1.18.x - 1.15.x | | 3.1.x | 1.17.x - 1.14.x | | 3.0.x | 1.16.x - 1.13.x | | 2.16.x | 1.16.x - 1.15.x | | 2.15.x | 1.15.x - 1.14.x | | 2.14.x | 1.14.x - 1.13.x | | 2.13.x | 1.13.x - 1.12.x | | 2.12.x | 1.12.x - 1.11.x | | 2.11.x | 1.11.x - 1.10.x | | 2.10.x | 1.10.x - 1.9.x | | 2.9.x | 1.10.x - 1.9.x | | 2.8.x | 1.9.x - 1.8.x | | 2.7.x | 1.8.x - 1.7.x | | 2.6.x | 1.7.x - 1.6.x | | 2.5.x | 1.6.x - 1.5.x | | 2.4.x | 1.6.x - 1.5.x | | 2.3.x | 1.5.x - 1.4.x | | 2.2.x | 1.5.x - 1.4.x | | 2.1.x | 1.5.x - 1.4.x | | 2.0.x | 1.4.x - 1.3.x |

注:Helm 2 採用 client/server 架構,分爲 Helm 客戶端和 Tiller 服務端,而 Helm3 移除了 Tiller,也就是說 Helm 3 只要安裝 Helm 就好了。

關於 Helm 2Helm 3 的區別可以閱讀官方文檔:https://helm.sh/zh/docs/faq/

本文會選擇 Helm 3.4.2 進行安裝。

下載安裝 Helm 3.4.2

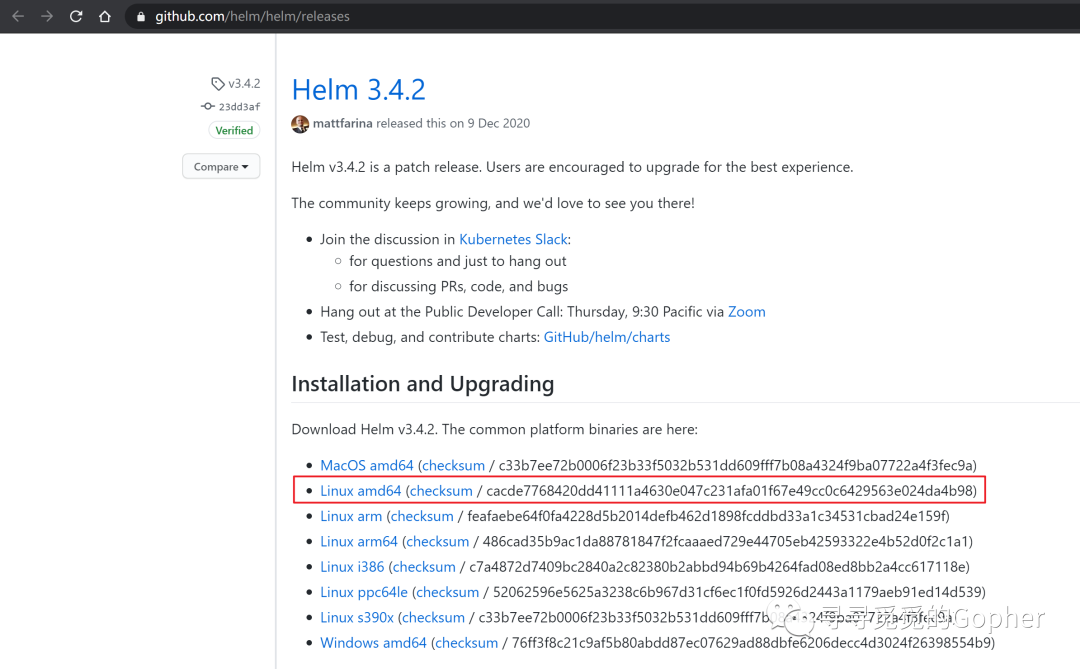

訪問 https://github.com/helm/helm/releases 選擇對應的版本,下載拷貝到集羣中的 Master 節點解壓

tar -zxvf helm-v3.4.2-linux-amd64.tar.gz

移動到 /usr/local/bin

mv linux-amd64/helm /usr/local/bin/helm

查看是否安裝成功

helm version


使用 Helm 部署 Consul 集羣

Helm 基本用法

在部署 consul 之前,先來看看 helm 的基本用法。

查找 Charts

helm search hub # 從 Artifact Hub 中查找並列出 helm charts。Artifact Hub中存放了大量不同的倉庫。
helm search repo # 從你添加(使用 helm repo add)到本地 helm 客戶端中的倉庫中進行查找。

添加 HashiCorp Helm 倉庫:

helm repo add hashicorp https://helm.releases.hashicorp.com
# 查看已添加的倉庫列表
helm repo list

搜索 consul

helm search repo consul


Consul 所需環境準備

命名空間

創建一個命名空間,後續都會在此命名空間上進行操作:

kubectl create namespace consul


存儲

由於 consul 部署的時候會創建使用 PVC:PersistentVolumeClaimPodPod 中的應用通過 PVC 進行數據的持久化,而 PVC 使用 PV: PersistentVolume 進行數據的最終持久化處理。所以我們要準備好存儲資源供應,否則 consul-server 會因爲獲取不到存儲資源而一直處於 pending 狀態,有以下兩種方案:

方案 1,手動創建靜態 PV 進行存儲供應

cat <<EOF | kubectl apply -f -
---
kind: PersistentVolume
apiVersion: v1
metadata:
  name: pv-volume-consul-0
  namespace: consul
  labels:
    type: local
spec:
  storageClassName: ""
  capacity:
    storage: 10Gi
  accessModes:
    - ReadWriteOnce
  hostPath:
    path: "/consul/data"
---
kind: PersistentVolume
apiVersion: v1
metadata:
  name: pv-volume-consul-1
  namespace: consul
  labels:
    type: local
spec:
  storageClassName: ""
  capacity:
    storage: 10Gi
  accessModes:
    - ReadWriteOnce
  hostPath:
    path: "/consul/data"
EOF

查看:

kubectl get pv -n consul -o wide


方案 2,通過 StorageClass 實現動態卷供應

在所有節點上安裝 nfs-utils:

yum install -y nfs-utils

選擇一臺節點,這裏選擇 work2(192.168.19.138) 節點作爲 nfs server:

# 創建nfs目錄
mkdir -p /mnt/nfs
# 配置nfs權限
cat>/etc/exports<<EOF
/mnt/nfs/ 192.168.19.0/24(insecure,rw,anonuid=0,anongid=0,all_squash,sync)
EOF
# 啓動nfs服務
systemctl start rpcbind.service
systemctl start nfs-server.service
# 設置開機自啓
systemctl enable rpcbind.service
systemctl enable nfs-server.service
# 配置生效
exportfs -r

在 master 節點使用 helm 安裝 nfs-provisioner:

# 添加倉庫源
helm repo add azure http://mirror.azure.cn/kubernetes/charts/
# 搜索nfs-client-provisioner
helm search repo nfs-client-provisioner
# 安裝nfs-client-provisioner
helm install nfs-storage azure/nfs-client-provisioner -n consul \
--set nfs.server=192.168.19.138 \
--set nfs.path=/mnt/nfs \
--set storageClass.name=nfs-storage \
--set storageClass.defaultClass=true
# 查看StorageClass
kubectl get sc -n consul

至此,當有 PVC 需要申請 PV 時,StorageClass 就會自動爲我們創建 PV 了。

配置文件

創建 config.yaml

global:
  name: consul # 設置用於 Helm chart 中所有資源的前綴
ui:
  service: # 爲 Consul UI 配置服務
    type: 'NodePort' # 服務類型爲 NodePort
server:
  replicas: 2 # 要運行的服務器的數量,即集羣數
  affinity: "" # 允許每個節點上運行更多的Pod
  storage: '10Gi' # 定義用於配置服務器的 StatefulSet 存儲的磁盤大小
  storageClass: "" # 使用Kubernetes集羣的默認 StorageClass
  securityContext: # 服務器 Pod 的安全上下文,以 root 用戶運行
    fsGroup: 2000
    runAsGroup: 2000
    runAsNonRoot: false
    runAsUser: 0

更多配置可以參考:https://www.consul.io/docs/k8s/helm


開始安裝

helm install hi-consul hashicorp/consul -n consul -f config.yaml

hi-consul:你命名的 release 名字

hashicorp/consul:你想安裝的 chart 的名稱

-n :指定命名空間

-f :傳遞配置文件

執行安裝命令後我們可以監控 pod 的狀態:

kubectl get pods -n consul -o wide -w

等待所有 Pod READY 完畢後,查看 svc 狀態:

kubectl get svc -n consul -o wide

瀏覽器訪問 http://master:30497/ui/ (已設置 hosts)或 http://192.168.19.136:30497/ui/

題外話

# 查看helm已安裝列表
helm list -n consul
# 卸載
helm uninstall hi-consul -n consul
# 更多
helm help
